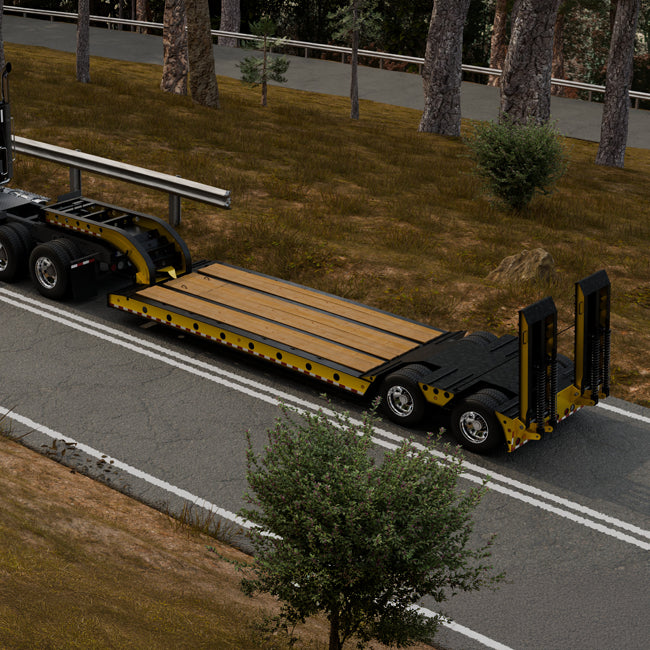

The West Coast Custom

Feature	Specification
Construction	100% 130 KSI/100 KSI Yield Steel
SAF Axles	2 Axles at 24,250 lbs. (each)
Capacity	35 Tons
Width	8" 6'
Suspension	Air-Ride
Deck Height	27" Nominal Center of Deck (Dependent of 5th Wheel Height)
Tires	18 Ply 285/ 70R19.5
Wheels	– 7.5 x 19.5 – 10-Hole – Hub Piloted – Steel
Decking	3" Larch Wood
Gooseneck	– Mechanical - Removeable – 9' Narrow Neck – Single Kingpin
Over-Front Loading	10.8"
Over-Rear Loading	45" (w/ ramp)
Brakes	Drum
Overall Length	33' [assumes 14' deck & 8' gooseneck]
Paint	Up to 2 custom colors
GVWR	90,000lbs (depending on options)

Feature	Specification
Deck Lengths	12', 14', 16', 18', 20', 22', 24'
Spring Assisted Rear Ramps	– 6'x 2.5' (LxW)
Gooseneck	– 9’ Narrow Neck (2 Kingpins) – 9’ Wide Neck (2 Kinpins) – 8’ Narrow Neck (1 Kinpin) – 8’ Wide Neck (1 Kinpin)
Decking	– 3” Larch Wood – 3” Apitong Wood
Chain Boxes	– Neck – and/or Deck
Wheels	– Steel – Aluminum
Tie Downs	– 10,000lbs Capacity D-Rings on Outer Frame 5 per side, 2 on Axle Deck – 8 Recessed 10,000lbs Capacity D-Rings – 12 Cut-Out Chain Pockets on Deck
Brakes	– Drum – Disc
